Having used Linux as my daily operating system for about 2 years now, I have really gained an appreciation for open source software, especiall software that you can host yourself. This has led me on a seemingly never-ending search to find the best open source alternatives to my typical day-to-day applications. One such example is Diagrams.net, formerly Draw.io.

As an aspiring Solutions Architect using an architecting and flow chart tool like Diagrams is an absolute must-have, especially as Diagrams has a massive section dedicated purely to the various AWS, GCP and Azure services amongst others, which makes architecting so much easier to design. I was super excited when I then heard that Diagrams is in fact open source and self-hostable and I knew that I just had to try and host it myself using AWS.

Self hosting provides a lot of benefits, the primary one being security. If you are self-hosting an application that stores or utilises sensitive or mission-critical data being able to self-host data allows greater control in terms of being able to limit access to these application and being able to monitor the app's usage muhc better than if you were using a closed-source SAAS application.

As Diagrams.net is a fairly straightforward application it doesn't really benefit from the privacy and security that self-hosting provides, as it doesn't have any ability to store any of the created diagrams within the paplication, instead they are saved locally to the device that is accessing the application. Instead the real benefit of self-hosting Diagrams.netis to keep the access within your AWS network, meaning that you don't have to traverse the public internet to access your key applications.

Downloading the Diagrams.net self-hosting package gives you access to multiple docker files depending on the platform you are hosting for such as nextcloud. This also contains a docker-compose file which can create a blueprint for the docker file in AWS including building the necessary infrastructure to allow for the proper working of the application.

Using Docker Compose it will automatically create the ECS tasks using Fargate, and attach it to a network load balancer with the necessary ports opened in the security group etc. meaning it is a really simple setup in that you just need to build the compose file and everything else is managed for you.

In order to get it working easily online I did also open up port 80 and 443 in the security group and network load balancer as teh app defaulted to port 8080 and 8443 respectively.

Because the docker files already build in elements for self signing certificates via Let's Encrypt! it has caused some weird issues when trying to build access to the page through my Route 53 domain using the certificates issued by ACM, in that the self-signing certificate seems to override the ACM certificate and therefore causes a few warning messages when accessing the webpage via HTTPS. This is something I haven't quite been able to resolve as of yet but want to look into further.

Because this setup isn't really able to make use of any free tier benefits I wanted to try and minimise costs by only having the tasks running only when I would be using it. As Fargate doesn't have a way of being able to do scheduled scaling events I was able ot replicate this functionality using a mixture of Lambda and EventBridge.

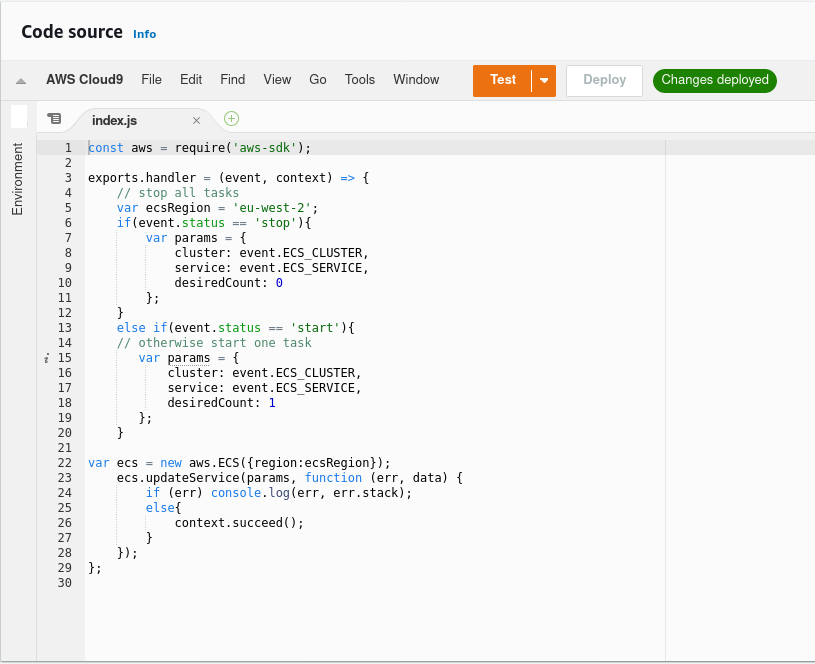

Using EventBridge I can set a Lambda function to trigger on a set schedule using a cron job to determine when these triggers should fire every day. This then trigger the Lambda function that will change the task count based on the JSON code supplied by the EventBridge rule.

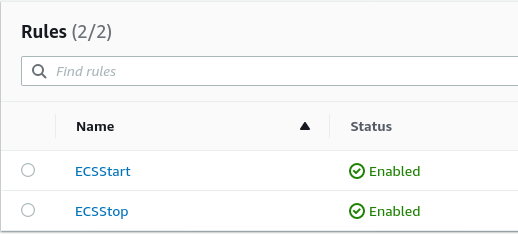

As a result, I have 2 EventBridge rules, one to "start" Diagrams every morning and one to "Stop" it every evening.

Each rule then triggers the Lambda function 3 times, once for each task that is part of the Diagrams ECS cluster.

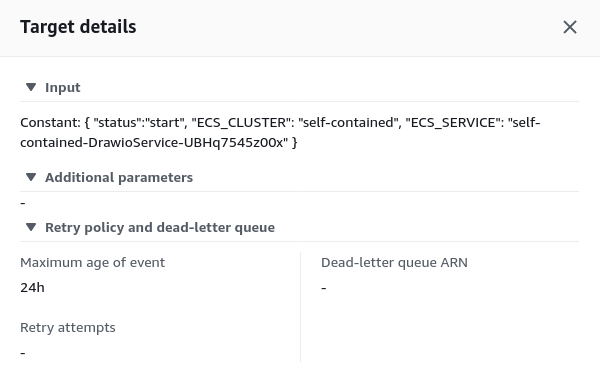

This then provides a JSON file that identifies the task that we want to define and then whether the status is "start" or "stop" to change the task count accordingly.

By having a generic Lambda function and then passing in the relevant variables into the JSON file it makes the functions much more flexible and easier to manage.

This project has actually worked out to be more expensive than I originally anticipated, due to the sort of resources that the docker compose file was utilizing. For example, by using a network load balancer as opposed to an application load balancer, I was not able to employ the free tier that is available just for ALB's, and so I was having to pay for the full amount of time that the NLB was running. This is a similar situaiton with Fargate, in that I would need to pay essentially per hour that the tasks were running. The scheduled scaling did a good job of reducing my ECS costs however unfortunately that could not do anything for the network load balancer so the costs did remain fairly high at around £40 per month.

This could be mitigated by moving to ECS hosted on EC2 using a free tier instance such as the T2.micro and employing an ALB however that would require much more hands on experience to set up which I am currently not too confident with as my experience with Docker is still fairly limited. I hope to be able to improve this with further projects and perhaps come back and replicate this project with an emphasis on reducing cost as much as possible.
